QNAS SERVEUR Synology RACKSTATION ds923+

Product Name

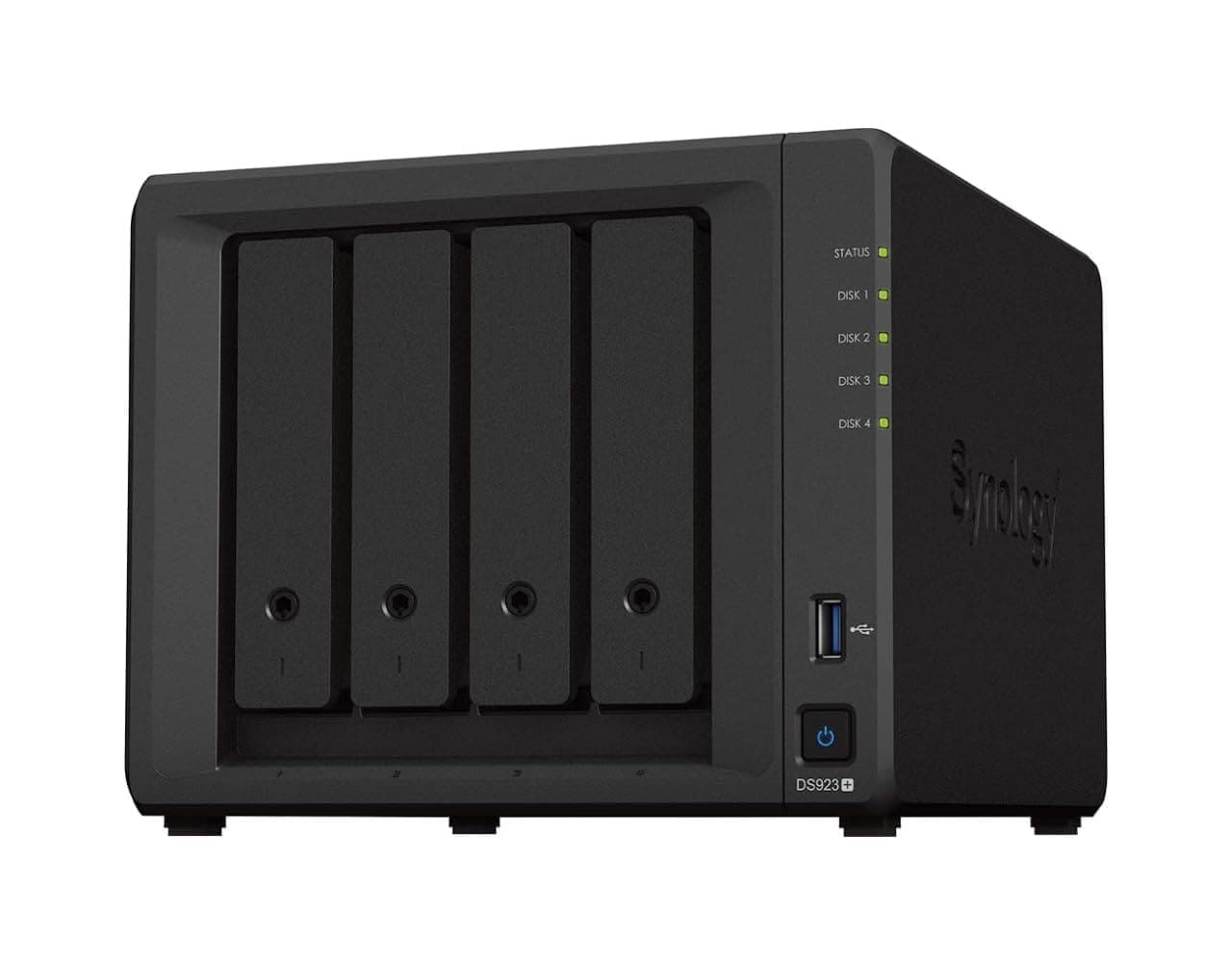

Synology RackStation DS923+ NAS Server

Device Type
NAS (Network Attached Storage) Server
Compact desktop form factor (not rackable – despite the name « RackStation », this model is a Desktop type , not a 1U/2U Rack)

Processor
• AMD Ryzen R1600 Dual-Core
• Frequency: 2.6 GHz (up to 3.1 GHz in boost mode)
• 64-bit architecture

RAM
• 4 GB DDR4 ECC (expandable up to 32 GB – 2 x 16 GB)
• SO-DIMM slots x 2

Drive Bays
• 4 x 3.5″ / 2.5″ SATA HDD or SSD bays
• Hot-swappable support
• Compatible with HDD and SSD drives up to 108TB total (with 4 x 27TB drives)

Expandable Storage
• Expandable up to 9 bays via DX517 (Synology Expansion Unit sold separately)

NVMe SSD Slots
• 2 M.2 2280 NVMe slots for SSD cache
• Read/write cache acceleration without occupying a drive bay

Network and connectivity
• 2 x 1 GbE RJ-45 LAN ports (aggregation possible)
• Slot for optional network module (up to 10 GbE)
• 2 x USB 3.2 Gen 1 ports
• 1 x eSATA port for expansion unit

Operating System
• Synology DiskStation Manager (DSM 7.2 or above)
• Intuitive web interface
• Server application support:
– Centralized backup
– Media server (DLNA, Plex, etc.)
– Virtualization (thin VMs)
– Private cloud, synchronization, remote access
– Video surveillance (with Surveillance Station)

Security and reliability
• Btrfs file system with snapshot support
• RAID redundancy: Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
• Hardware-based AES-NI data encryption
• Regular security updates

Power consumption
• In operation: approximately 35 W
• In standby: approximately 12 W (depending on disk configuration)

Dimensions and weight
• Dimensions: 166 x 199 x 223 mm
• Weight: 2.24 kg (without discs)

Included Accessories
• RJ-45 Cables
• Power Adapter
• HDD/SSD Screw Kit
• Quick Start Guide

Warranty
• 3-year manufacturer’s warranty
• Possibility of extension to 5 years via Synology Extended Warranty Pack
